Fit a best-fit line to BLS data on years of education vs. weekly income, then use that line to predict incomes for years 8 through 24. Build the scatter plot and extend the trendline both directions.
A 7-page MA1 Walkthrough PDF covers all three tabs in the same hint depth as this page. Useful if you'd rather print, annotate on paper, or keep it open on a second screen while working in Excel.
Walkthrough video coming in a future recording. Until then, work from the slideshow above and the printable PDF.
BLS data on top. Your predictions below. Chart at the bottom.
Your name in cell B1 seeds the data — until you fill it in, every value in column B reads “Enter your name in B1.” Type your full first and last name first, then everything below populates.
Eight rows. Column A holds years of education (X). Column B holds the corresponding average weekly income (Y), randomized off your name.
Column D is already filled. Column E is where you'll use the line equation Y = m·X + b to predict income at each year of education.
Empty for now. You'll insert an XY scatter of the BLS data (columns A and B, not the predicted table) with a trendline extended to x = 8 and x = 24.

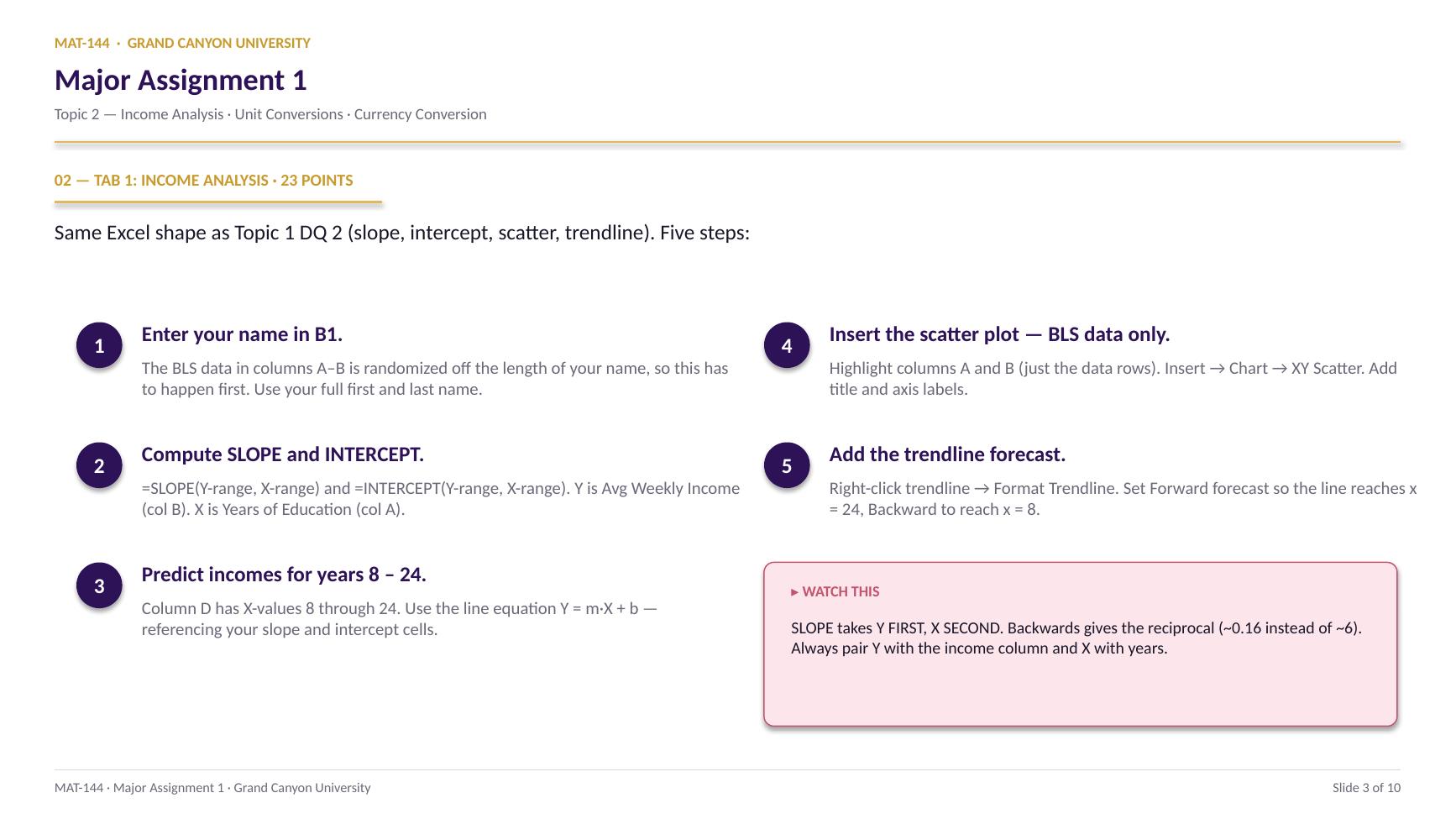

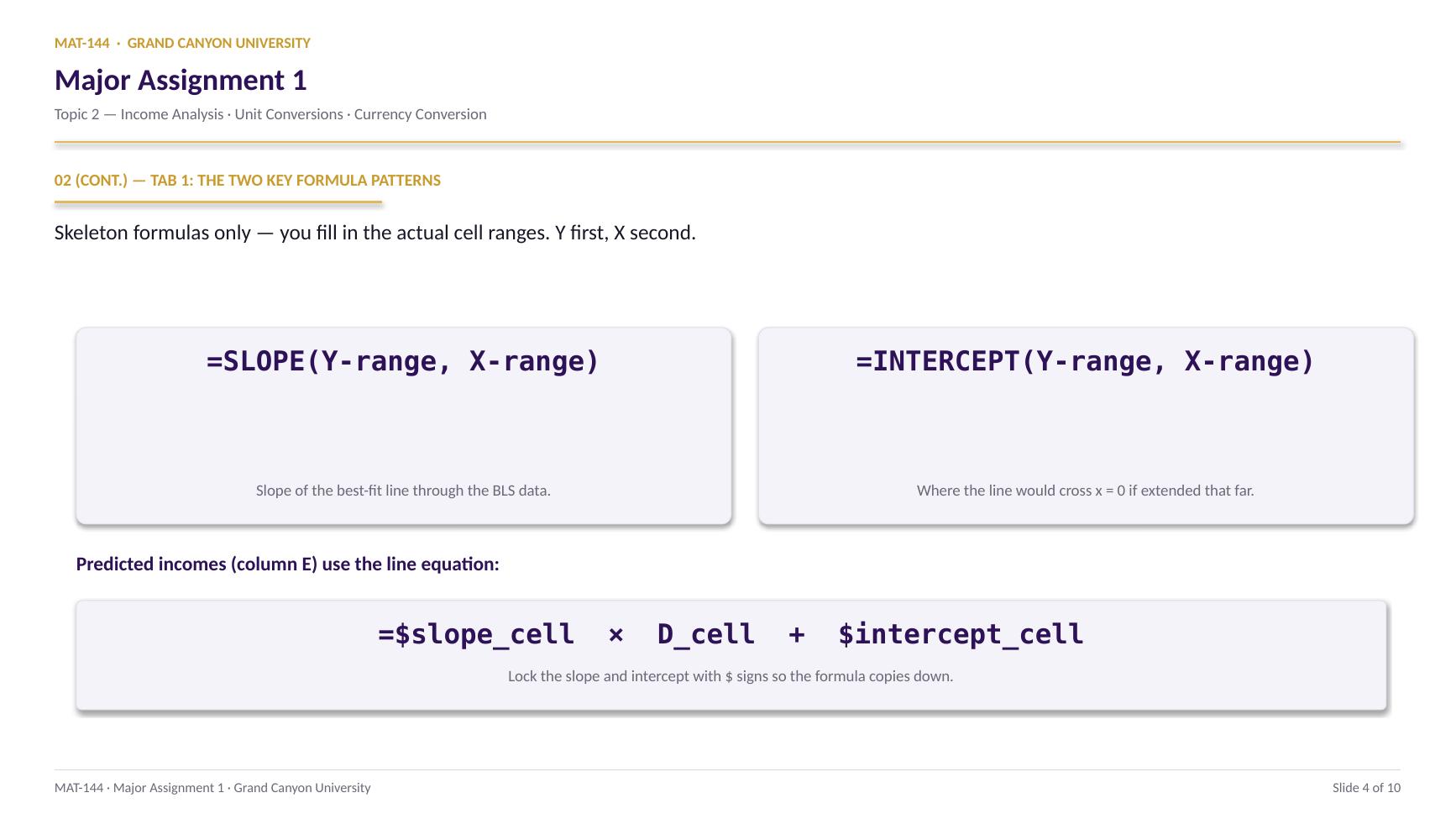

Each is the same Excel pattern: click cells, never type numbers. Lock the references with dollar signs so formulas copy clean.
=SLOPE() reads rise over run, automatically.Type =SLOPE(Y-range, X-range) — Y first, X second. Y is your Average Weekly Income column (B). X is Years of Education (A). The function returns the slope of the best-fit line through every (X, Y) pair in the data.
Format the result cell as Number with 0 decimals. The number tells you how many extra dollars per week each additional year of education buys.
=INTERCEPT() finds b.Same shape as SLOPE: =INTERCEPT(Y-range, X-range), Y first. INTERCEPT returns the predicted Y-value when X = 0 — where the best-fit line would cross the y-axis if extended.
Format as Number with 0 decimals. Read it as “the predicted weekly income at zero years of education” — which is a wild extrapolation, so don't treat the value too literally. It's a parameter, not a real-world prediction.
The pattern: =$slope_cell * D_cell + $intercept_cell. Lock the slope and intercept cells with $ signs (e.g., $B$28) so the formula copies cleanly down. The D-cell stays relative so each row picks up its own X-value.
Format column E as Currency with the $ symbol and 0 decimals.
Highlight columns A and B (just the eight data rows). Insert → Chart → XY Scatter. Don't include the predicted-incomes table — that's a separate exercise.
With the chart selected: Chart Design → Add Chart Element → Trendline → Linear. Then right-click the line and pick Format Trendline. Set Forward forecast so the line reaches x = 24, and Backward forecast to reach x = 8. Add a chart title and axis labels via Add Chart Element.

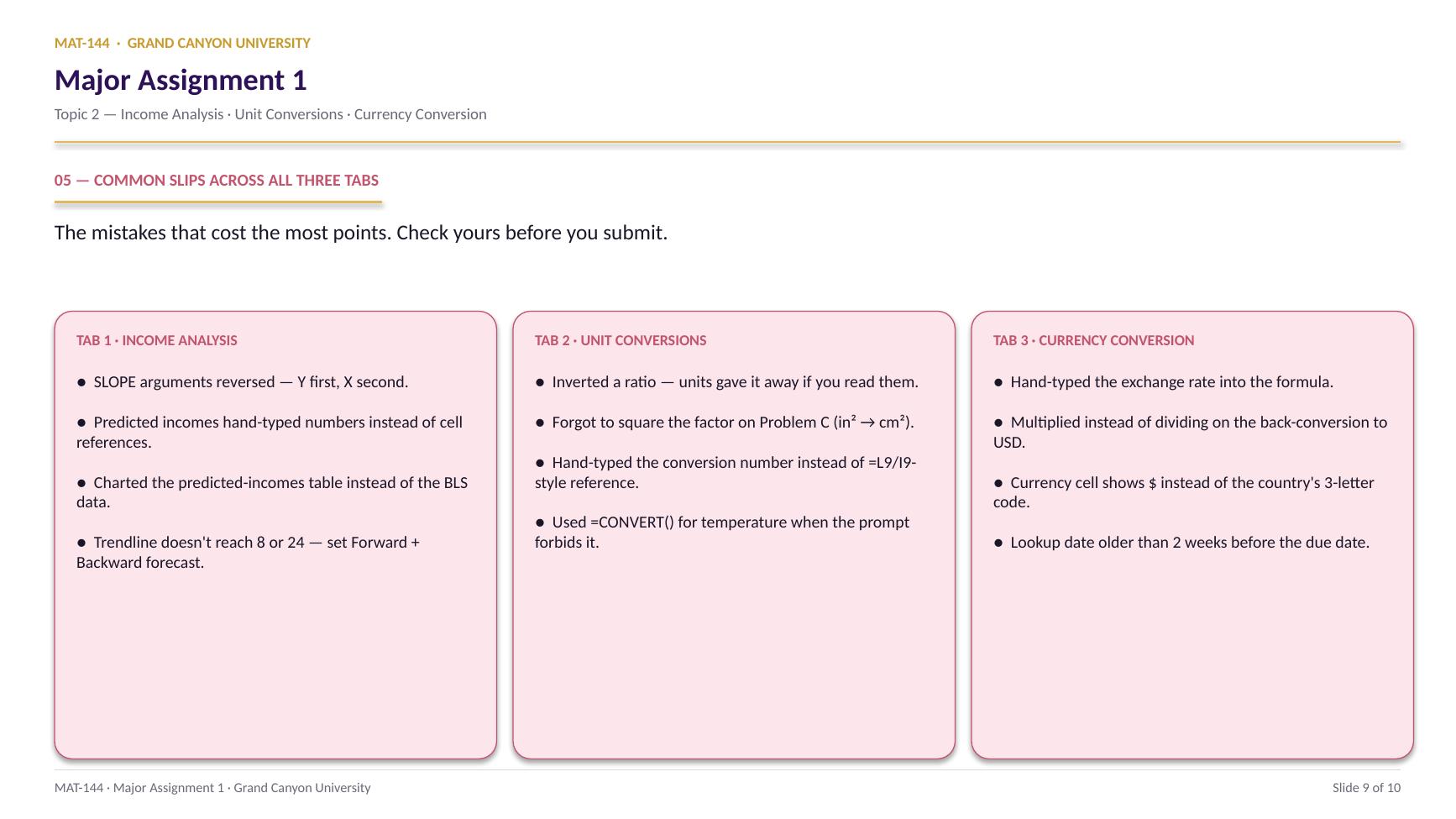

Check these before you submit. Three out of four are formula-reference issues, not math errors.
=SLOPE(X, Y) returns the reciprocal of the right answer (~0.16 instead of ~6). Y first, X second. ALEKS reads it like “rise over run.”
Looks right on the surface, but the auto-grader checks for cell references. Click the slope and intercept cells in your formula instead of typing the numbers. Add dollar signs ($B$28) so references don't shift when you copy down.
If your scatter plot has dots at (8, 0), (9, 0), … you selected the predicted-incomes table (D and E) instead of the BLS data (A and B). Click the chart, “Select Data,” and point at columns A and B for the BLS data only.
Right-click the trendline → Format Trendline. Set Forward forecast and Backward forecast so the line reaches from x = 8 to x = 24, even though the data only spans 10–20.
Slope and y-intercept are the Topic 1 move. The Excel functions =SLOPE() and =INTERCEPT() just automate what you'd do by hand with two points: divide rise by run, then back-solve for b. Read your output as a story: the slope tells you how many extra dollars per week each year of education buys, and the intercept is the predicted income at zero years (which is a wild extrapolation, hence the chart's lower bound at 8).
If the math feels distant, jump back to Topic 1 Lesson 4 (Slope) and Lesson 5 (Linear Modeling) for a refresh. The Excel shape is also very similar to Topic 1 DQ 1: cell references in formulas, gold cells for the math, blue cells for text, number formatting at the end.
